VacuPrep™ Epoxy Impregnation System


The VacuPrep™ removes trapped air from uncured epoxy, filling open pores and cavities in samples to provide maximum bonding and support. This maintains sample integrity during abrasive preparation, reducing the chance of cracking or delamination.

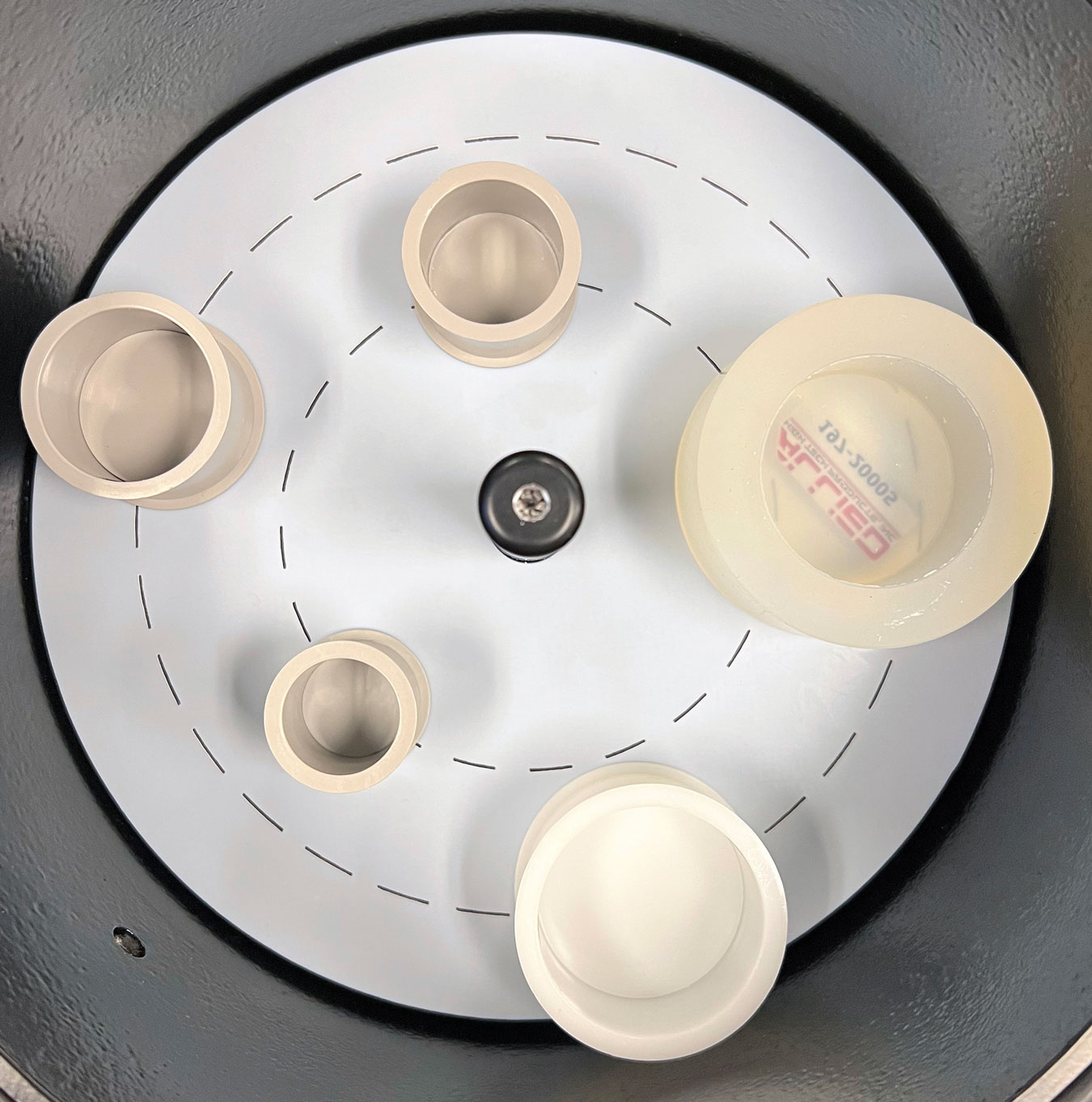

The VacuPrep™ comes in two (2) versions - the standard model and a turntable model.  This new variant adds a turntable with an anti-stick PTFE lined interior that operates with a rotation wheel located on the exterior right side of the unit. The turntable features markings where cups can be positioned beneath the fill tube in the cover. The operator then rotates the wheel on the right side of the unit to position each cup for drawing epoxy from the mixing cup while under vacuum.


More Views

VacuPrep™ Vacuum Impregnation System


Through-port for optional epoxy fill under vacuum   Cup holder for mixed epoxy
Clear top allows sample viewing during process   Pulls up to 28 inHg vacuum
Large 10" x 4.5" (254 x 114 mm) deep chamber; holds up to (30) 1.25" (32 mm) cups   Stainless steel components resist corrosive gases
Quiet, pump-free operation   Operates with compressed air, 80 psi (5.5 bar)
Dimensions: 13" W x 18" D x 6" H (330 x 457 x 152 mm)   Weight: 21 lb. (9.5 kg)
Designed & manufactured by Allied in the USA   Two (2) Year warranty
Item # Description Qty
175-30000 VACUPREP™ Epoxy Impregnation System
175-30050 VACUPREP™ Epoxy Impregnation System, with Turntable
