The TechCut 5x™ precision high-speed saw is a versatile, programmable machine designed to cut a wide variety and size of materials. It automatically sections materials at high speeds, increasing sample throughput. The PLC-based system controls sample feed rate, distance and force. Closed-loop monitoring of the blade and table optimizes cutting performance and minimizes blade breakage by automatically adjusting the feed rate when variations in sample material or thickness are detected. When sectioning is complete, the table automatically retracts the sample to the home position and stops blade rotation and coolant flow. The unique fixturing system allows for easy changes between the T-Slot Table and the X-Axis Tables. Both tables offer a variety of convenient table-specific fixture options.
See pictures for:
-
New joystick for sample positioning
-

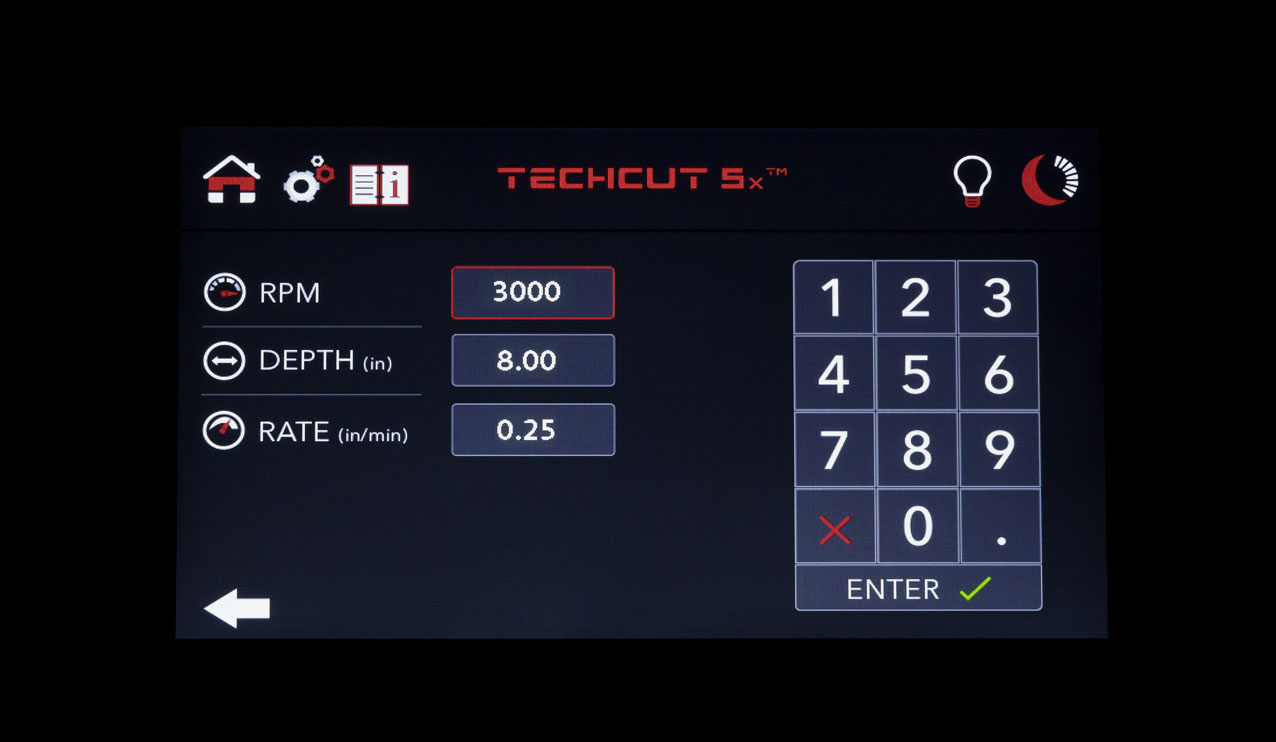

7" color LCD touchscreen
-
#5-5730 Z-Axis Stage with #5-5540 Dicing Rotation Stage
-

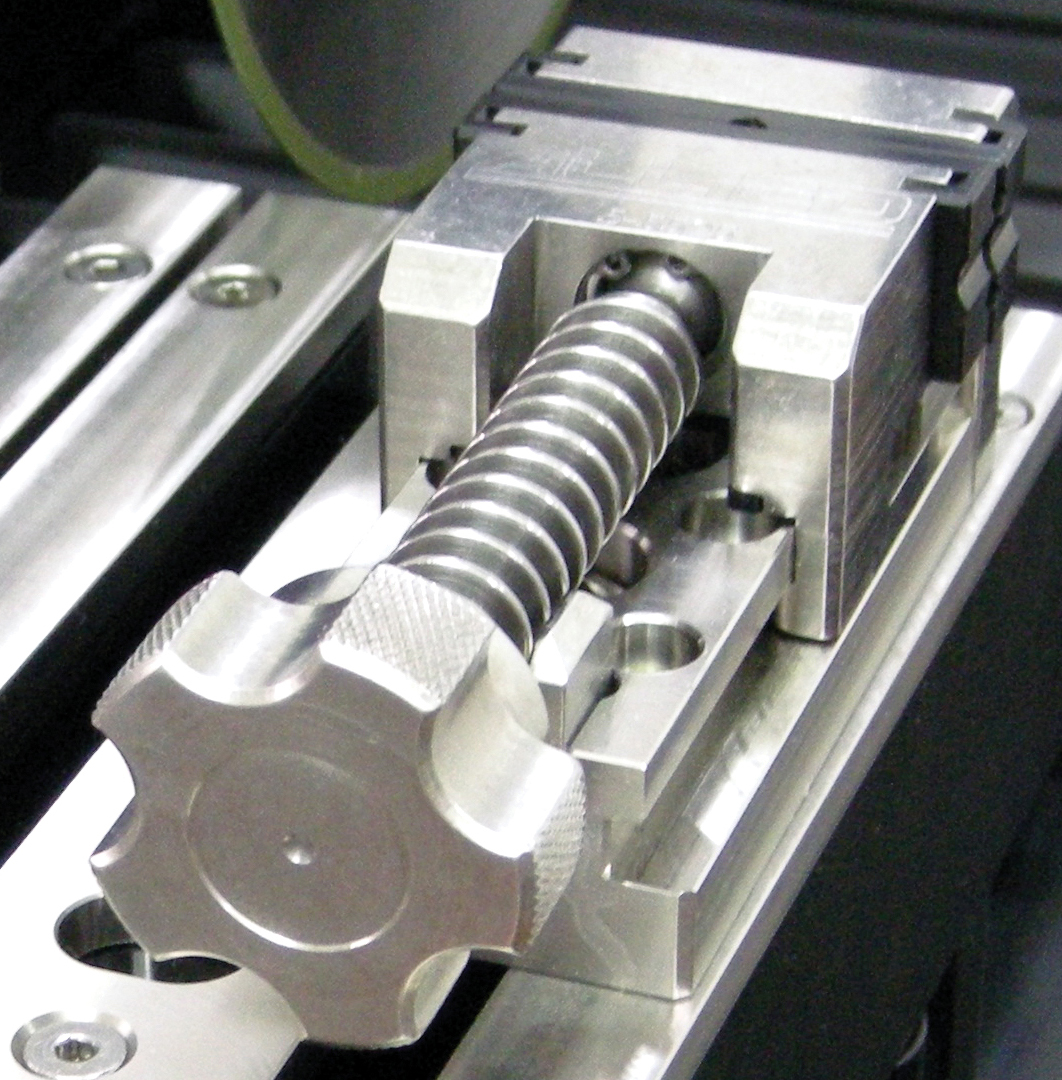

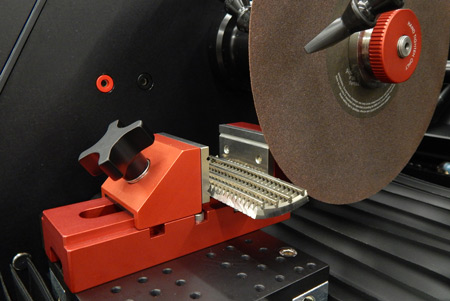

#5-5525 Quick-slide stainless steel vise with removable delrin jaw inserts
More Views
TechCut 5 Video
Features
| Cutting capacity: up to 2.5" (63 mm) bar stock | Motorized (joystick) Y-axis sample positioning | |
| Accepts 3-8" (76-203 mm) blades with either 0.5" (12.7 mm) or 1.25" (32 mm) arbor hole | Manual (hand wheel) Y-axis sample positioning/cutting | |
| Programmable feed rate from 0.01" to 5" (0.2 mm to 125 mm) per minute | Variable blade speed: 500-5000 RPM (100 RPM increments) | |
| Sample rotation for difficult, round or thick samples (with optional #5-5745 Rotational Cutting Attachment) | Automatic Y-axis sample advancement with soft-start and closed loop positional feedback | |
| Selectable cutting force (low, medium, high) optimizes feed rate based on blade load | Programmable cut depth up to 8”/200 mm (0.01”/.2 mm increments) with high-speed auto retraction | |
| Distance/Time Remaining function allows real-time monitoring until cycle completion | Push-button spindle lock for easy blade changes | |
| Closed-loop load monitoring to reduce blade binding/breakage | Selectable units of measure - imperial or metric | |
| Intuitive interface optimized for productivity and efficiency | 1.25 HP (950 W) high torque DC motor | |
| 7" color LCD touchscreen with keypad entry to control all functions | LED illuminated interior with external switch | |
| Adjustable Y-axis jog speeds with joystick proportional control | Adjustable coolant flow and position with coolant wash-down hose | |
| Protective metal cover with viewing windows and safety auto shut-off sensor | Water flow-through model available | |
| Stainless steel reservoir - either internal 1.25 gallon (4.7 L) or external 7 gallon (26.5 L) capacity | Strongly recommend #5-5580 Magnetic Particle Collector if cutting ferrous metals | |
| Dimensions: 24" W x 25" D x 19" H (610 x 635 x 483 mm) | Weight: 142 lb. (65 kg) | |
| Two (2) year warranty | Designed & manufactured by Allied in the USA |
| Item # | Description | Qty | |
|---|---|---|---|
| 5-5750-ER | TECHCUT 5x™ PRECISION HIGH SPEED SAW with External Reservoir, 100-240 V, 50/60 Hz 1 Phase. | ||
| 5-5750-IR | TECHCUT 5x™ PRECISION HIGH SPEED SAW with Internal Reservoir, 100-240 V, 50/60 Hz 1 Phase. | ||
| 5-5750-FT | TECHCUT 5x™ PRECISION HIGH SPEED SAW with Water Flow-Through, 100-240 V, 50/60 Hz 1 Phase. |
Product Accessories
NOTE: Tables and Accessories are SOLD SEPARATELY. Please choose a Table(s) and Accessories from the list below to ensure a complete system is configured for quotation.
| Item # | Description | Qty | |
|---|---|---|---|
| T-SLOT | T-SLOT TABLE & ACCESSORIES | ||
| 5-5330 |  Click to Enlarge » |
T-Slot Table | |
| 5-4050 |  Click to Enlarge » |
Vertical Adjusting Clamp 2.25" (57 mm) Capacity | |
| 5-5350 |  Click to Enlarge » |
Clamp Set for up to 0.25" Thick Samples (Pk/4) | |
| 5-5525 |  Click to Enlarge » |
Quick-Slide Stainless Steel Vise 2.13" Opening x 1.87" W x .83" H (54 x 47 x 21 mm) | |
| X-AXIS | X-AXIS TABLES & ACCESSORIES | ||
| 5-5320 |  Click to Enlarge » |
X-Axis Table (25 µm Resolution) | |
| 5-5325 | Click to Enlarge » |
X-Axis Table (5 µm Resolution) | |
| 5-5070 |  Click to Enlarge » |
Fixture Rotation Stage, 40 mm Diameter x 25 mm Height, 360º continuous rotation (2º resolution) with locking screw | |
| 5-5520 |  Click to Enlarge » |
Cam-Lock Fixture Adapter, for Indexing Table | |
| 5-5525. | Click to Enlarge » |
Quick-Slide Stainless Steel Vise 2.13" Opening x 1.87" W x .83" H (54 x 47 x 21 mm) | |
| 15-1045 |  Click to Enlarge » |
Multipurpose Fixture for #5-5520 | |
| 5-5540 |  Click to Enlarge » |
Dicing Rotation Stage 360º with 0.1° Resolution, for Indexing Table (Z-axis Stage #5-5730 is recommended for height adjustment) | |
| 5-5555 |  Click to Enlarge » |

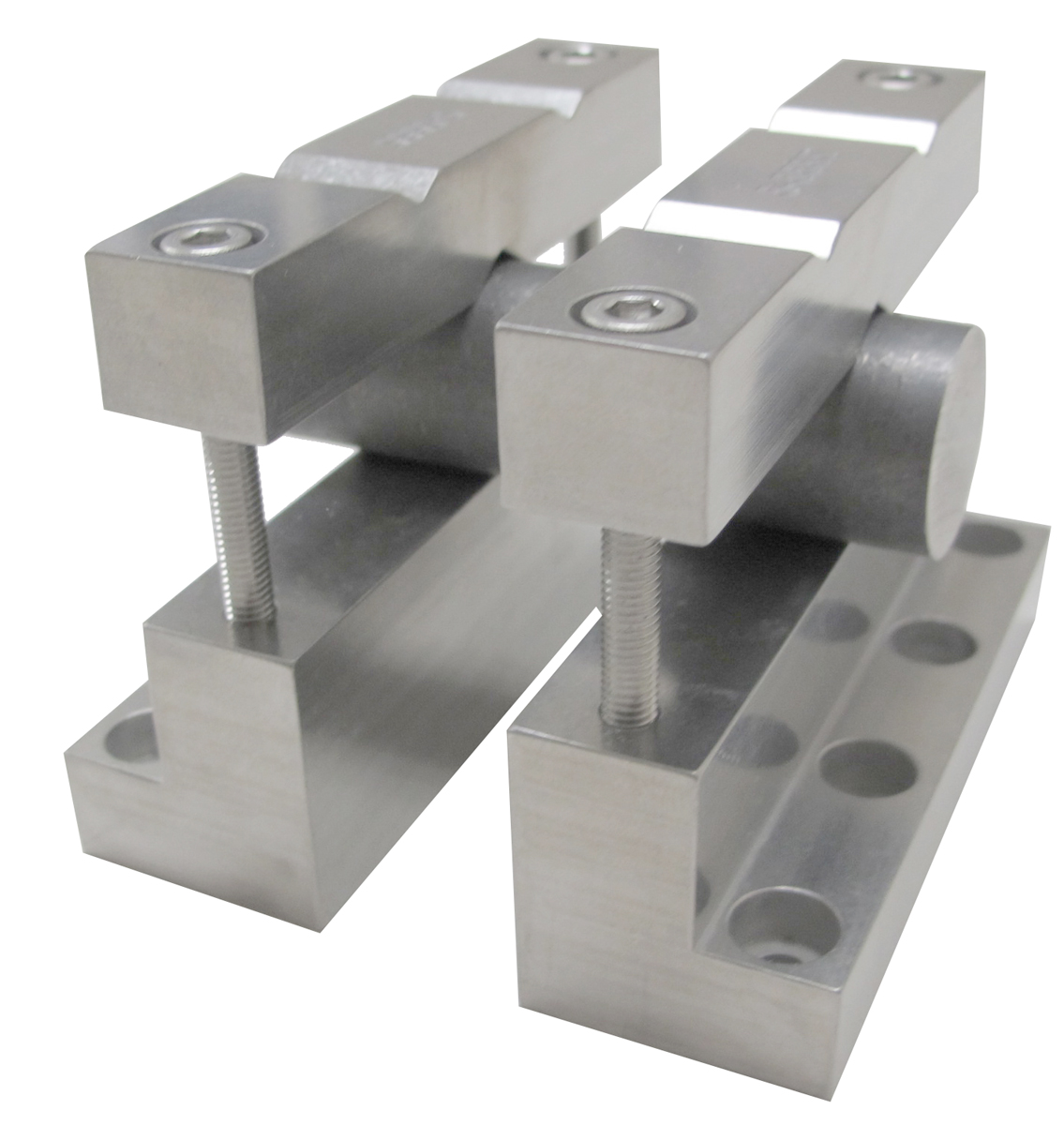

Dual Saddle Clamp Set | |
| 5-5560 |  Click to Enlarge » |
Teardrop Holder 2" capacity | |
| 5-5730 |  Click to Enlarge » |
Z-Stage for TechCut 5x™ 2" Travel - 5 µm Resolution | |
| 5-5735 |  Click to Enlarge » |
Safety Interlock for TechCut 5x Splash Shield | |
| 5-5745 |  Click to Enlarge » |
Rotational Cutting Attachment with Holders | |
| 5-4230 |  Click to Enlarge » |
Cabinet/Stand & Cart for PowerCut 10 & TechCut 5x 26" W x 26" D x 37" H (660 x 660 x 940 mm) |
