Allied's high-volume Printed Circuit Board (PCB) microsectioning and analysis solution makes it easy to prepare and document high-volume microsections for compliance with IPC standards.
From pin insertion and mounting to grinding/polishing to an automated measurement and archiving system, Allied provides a complete solution.
Brochure
More Views
Allied's Automated Software Measurement for PCB Microsections
Features
| High-volume preparation of up to fifty-four (54) multi-layer coupons | For coupons with a 2 mm or 0.094" Ø hole (uses 50 mm L pin) | |
| Complies with IPC TM-650, No. 2.1.1, Rev. F, Method B | Universal design adapts to non-Allied Machines with Drive Adapter | |

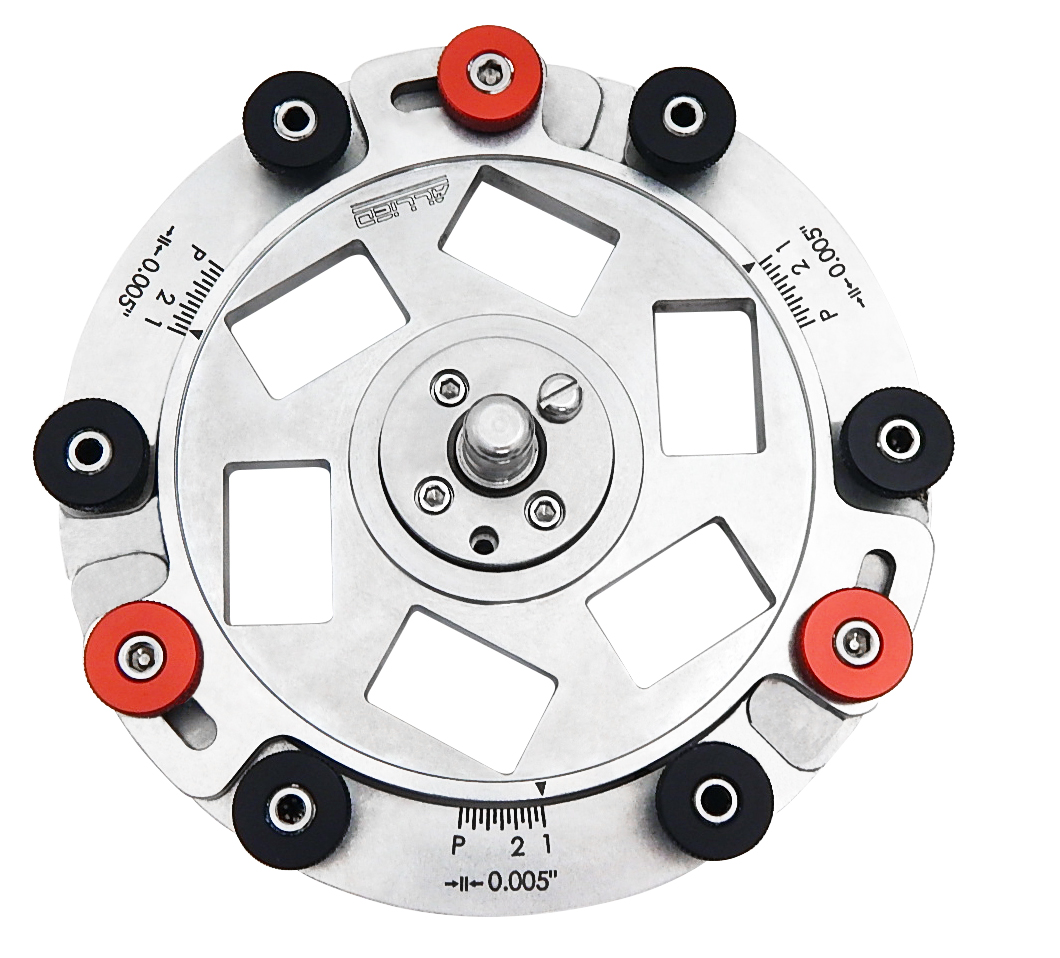

| Includes Pin Insertion Press for PCB/Coupon Preparation System | Includes PCB Sample Holder with Adjustable Diamond Stops, 6-position | |
| Includes Diamond Stop Height Gauge Assembly for setting diamond stop height of PCB Sample Holder | Use with MetPrep 4x™ Grinder/Polisher with PH-4™ Power Head | |
| Item # | Description | Qty | |
|---|---|---|---|
| 5-36PCBKIT05 | PCB TEST COUPON MICROSECTIONING PREPARATION KIT Includes: Pin Insertion Press, Fixture Assembly and Diamond Stop Height Gauge Assembly |
