The MultiPrep™ System enables precise semiautomatic sample preparation of a wide range of materials for microscopic (optical, SEM, FIB, TEM, AFM, etc.) evaluation.
Capabilities include parallel polishing, angle polishing, site-specific polishing or any combination thereof. It provides reproducible results by eliminating inconsistencies between users, regardless of their skill.
Dual micrometers (pitch and roll) allow precise sample tilt adjustments relative to the abrasive plane. A rigid Z-indexing spindle maintains the predefined geometric orientation throughout the grinding/polishing process. Digital indicators enable quantifiable material removal, which can be monitored real-time, or preset for unattended operation. Variable speed rotation and oscillation maximize the use of the entire grinding/polishing disc and minimize artifacts. Adjustable load control expands its capability to handle a range of small (delicate) to large samples.
BrochureMore Views
Features
MultiPrep Positioning Head Features:
| Front digital indicator to display real-time material removal (sample advancement), 1 µm resolution | Precision spindle that indexes the sample perpendicular to the platen, and can rotate simultaneously | |
| Dual axis, micrometer controlled angular positioning of the sample (pitch and roll): +10°/-2.5° range (0.02° increments) | Rear digital indicator to display vertical positioning (static) with zeroing function, 1 µm resolution | |
| Full or limited automatic sample rotation with 8 speeds | Cam-locking system that eliminates the need for tools and allows for precise repositioning of fixtures | |
| Variable sample load: 0-600 g (100 g increments) | Designed & manufactured by Allied in the USA | |
Grinder/Polisher Features:
| Variable platen speed: 5-350 RPM (5 RPM increments) | Digital timer and tachometer | |
| 7" color LCD touchscreen with keypad entry to control all functions | Clockwise/counterclockwise platen rotation | |
| Seamless integration with optional AD-5™ Fluid Dispenser for automatic operation | Electronic coolant control with adjustable valve | |
| Powerful, quiet 0.7 HP (535 W) Brushless DC motor that provides constant high torque output throughout the speed range | Stable RIM, aluminum and stainless steel construction | |
| Molded one-piece corrosion and impact resistant cover | Overflow diversion protects internal components | |
| Designed & manufactured by Allied in the USA | Two (2) year warranty | |
| CE compliant for EU |
| Item # | Description | Qty | |
|---|---|---|---|
| 15-2200 | MULTIPREP™ PRECISION POLISHING SYSTEM for 8" Platen, 100-240 V 50/60 Hz 1 Phase Includes: Splash Ring & Platen Cover, Dial Indicator Calibration Kit, Fixture/Accessory Storage Case | ||
| 15-2200-TEM | MULTIPREP™ SYSTEM with O-Ring Drive, for 8" Platen, 100-240 V 50/60 Hz 1 Phase - Designed for TEM Sample Preparation of Delicate Materials Includes: Splash Ring & Platen Cover, Dial Indicator Calibration Kit, Fixture/Accessory Storage Case |
Product Accessories

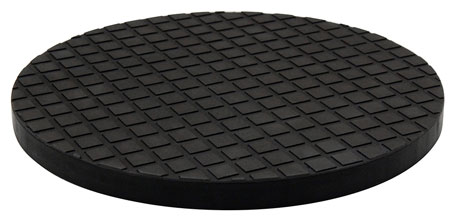

NOTE: Precision/Magnetic Platens, Fixtures and Accessories are SOLD SEPARATELY. Please choose from the list of accessories below to ensure a complete system is configured for quotation.
| Item # | Description | Qty | |
|---|---|---|---|
| 15-1005 |  Click to Enlarge » |
Cam-Lock Adapter for #15-1010, #15-1010-RE, #15-1013 | |
| 15-1010 |  Click to Enlarge » |
Cross-Sectioning Paddle with Removable 3.1 mm SEM | |
| 15-1010-RE |  Click to Enlarge » |
Cross-Sectioning Paddle with Reference Edge for #15-1005, #69-50000, #69-41000, #69-41005 | |
| 15-1013 |  Click to Enlarge » |
TEM Wedge/FIB Thinning Paddle with 5.3 mm W x 3.5 mm D x 17 mm L Pyrex® Insert | |
| 15-1014 |  Click to Enlarge » |
TEM Wedge/FIB Fixture Body and Pk/4 #69-40015 Pyrex® Inserts | |
| 15-1018 |  Click to Enlarge » |
Specimen Thinning Fixture with 0.5” D x 0.4” H (12.7 x 10.2 mm) Pyrex® Insert | |
| 15-1020 |  Click to Enlarge » |
Parallel Polishing Fixture, Stainless Steel, 2.25" (57 mm) Diameter | |
| 15-1020-80 |  Click to Enlarge » |
Parallel Polishing Fixture, Stainless Steel, 3" (80 mm) Diameter | |
| 15-1020-100 | Click to Enlarge » |
Parallel Polishing Fixture, Stainless Steel, 4" (100 mm) Diameter | |
| 15-1020-AI |  Click to Enlarge » |
Parallel Polishing Fixture, Center Axis, Including (1) #15-1020-AIP SEM/FIB Sample Mount with 3.1 mm Pin, 24.5 mm Ø (Pk/2) | |
| 15-1020-AIP |  Click to Enlarge » |
SEM/FIB sample mount with 3.1 mm pin, 24.5 mm Ø (Pk/2) | |
| 15-1025 |  Click to Enlarge » |
Teardrop Fixture 40 mm Mount Capacity | |
| 15-1035 |  Click to Enlarge » |
Weight Kit including: (1) 200 and (1) 100 gram Barrel Weights, (1) 200, (1) 100, and (1) 50 Gram Slotted Weights and (1) Holding Rod | |
| 15-1045 |  Click to Enlarge » |
Multipurpose Fixture, 2" W x 1" H x 0.75" D (51 x 25 x 19 mm) Pocket | |
| 15-1046 |  Click to Enlarge » |
Multipurpose Fixture, 45° Diagonal Orientation, 2" W x 1" H x 0.80" D (51 x 25 x 20 mm) Pocket | |
| 15-1047 |  Click to Enlarge » |
Multipurpose Fixture, 1.00" W x 0.40" H x 0.45" D (25 x 19 x 11 mm) Pocket | |
| 15-1048 |  Click to Enlarge » |
Multipurpose Fixture, 45° Diagonal Orientation, 1.0" W x 0.4" H x 0.5" D (51 x 10.2 x 12.7 mm) Pocket | |
| 15-1050 |  Click to Enlarge » |
Cross-Sectioning Paddle, Clamp Style with 0.63" W x 0.10" H x 0.25" D (16 x 2.5 x 6.4 mm) Pocket | |
| 15-1051 |  Click to Enlarge » |
Cross-Sectioning Paddle, Clamp Style, Diagonal Orientation with 0.63" W x 0.10" H x 0.25" D (16 x 2.5 x 6.4 mm) Pocket | |
| 120-30015 |  Click to Enlarge » |
Digital Indicator Measurement System, with Granite Stand (6" W x 8" D x 2-1/2" H), Height Adjustable Indicator Position (Lifting Lever Included), Metric and Imperial Indicator Selectable, 0.001 mm (1-micron Resolution), 25 mm Range of Motion | |
| 10-1005 |  Click to Enlarge » |
Precision Aluminum Platen, 8" (203 mm) | |
| 5-8100 |  Click to Enlarge » |
Platen Storage Cabinet for Platens, Discs or Cloths up to 12" (305 mm) Diameter | |
| 5-8105 |  Click to Enlarge » |
Aluminum Tray/Shelf |
