MultiPrep™ System - 12"

Precision Polishers

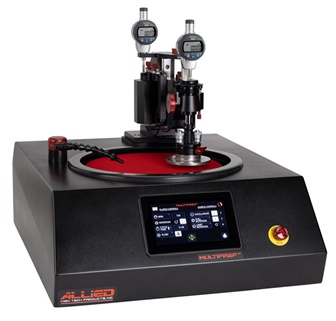

The MultiPrep™ System enables precise semiautomatic sample preparation of a wide range of materials for microscopic (optical, SEM, FIB, TEM, AFM, etc.) evaluation. Capabilities include parallel polishing, angle polishing, site-specific polishing, or any combination thereof. It provides reproducible results by eliminating inconsistencies between users, regardless of their skill. The 12" MultiPrep™ System has a scaled positioning device and higher torque rotation/oscillation motors for preparation of larger or multiple samples exceeding an area of 1,600 mm².

Dual micrometers (pitch and roll) allow precise sample tilt adjustments relative to the abrasive plane. A rigid Z-indexing spindle maintains the predefined geometric orientation throughout the grinding/polishing process. Digital indicators enable quantifiable material removal, which can be monitored real-time, or preset for unattended operation. Variable speed rotation and oscillation maximize use of the entire grinding/polishing disc and minimize artifacts. Adjustable load control expands its capability to handle a range of small (delicate) to large samples.

Brochure

More Views

Features

MultiPrep Positioning Head Features:

Front digital indicator to display real-time material removal (sample advancement), 1 µm resolution   Precision spindle that indexes the sample perpendicular to the platen, and can rotate simultaneously
Dual axis, micrometer controlled angular positioning of the sample (pitch and roll): +10°/-2.5° range (0.02° increments)   Rear digital indicator to display vertical positioning (static) with zeroing function, 1 µm resolution
Full or limited automatic sample rotation with 8 speeds   Cam-locking system that eliminates the need for tools and allows for precise repositioning of fixtures
Variable sample load: 0-600 g (100 g increments)   Designed & manufactured by Allied in the USA



Grinder/Polisher Features:

Variable platen speed: 5-350 RPM (5 RPM increments)   Digital timer and tachometer
7" color LCD touchscreen with keypad entry to control all functions   Clockwise/counterclockwise platen rotation
Seamless integration with optional AD-5™ Fluid Dispenser for automatic operation   Electronic coolant control with adjustable valve
Powerful, quiet 0.7 HP (535 W) Brushless DC motor that provides constant high torque output throughout the speed range   Stable RIM, aluminum and stainless steel construction
Corrosion/impact resistant cover   Two (2) year warranty
Designed & manufactured by Allied in the USA   CE compliant for EU
Item # Description Qty
15-2200-12 MULTIPREP™ 12" PRECISION POLISHING SYSTEM, 100-240 V 50/60 Hz 1 Phase Includes: Splash Ring & Platen Cover, Dial Indicator Calibration Kit, Fixture/Accessory Storage Case

Product Accessories

NOTE: Precision/Magnetic Platens, Fixtures and Accessories are SOLD SEPARATELY. Please choose from the list of accessories below to ensure a complete system is configured for quotation.

Item # Description Qty
15-1005 Click to Enlarge » Cam-Lock Adapter for #15-1010, #15-1010-RE, #15-1013
15-1010 Click to Enlarge » Cross-Sectioning Paddle with Removable 3.1 mm SEM
15-1010-RE Click to Enlarge » Cross-Sectioning Paddle with Reference Edge for #15-1005, #69-50000, #69-41000, #69-41005
15-1013 Click to Enlarge » TEM Wedge/FIB Thinning Paddle with 5.3 mm W x 3.5 mm D Pyrex® Insert
15-1014 Click to Enlarge » TEM Wedge/FIB Fixture Body and Pk/4 #69-40015 Pyrex® Inserts
15-1018 Click to Enlarge » Specimen Thinning Fixture with 0.5” Dia. x ~ 0.4” H (12.7 x 10.2 mm) Pyrex® Insert
15-1020 Click to Enlarge » Parallel Polishing Fixture, Stainless Steel, 2.25" (57 mm) Diameter
15-1020-80 Click to Enlarge » Parallel Polishing Fixture, Stainless Steel, 3" (80 mm) Diameter
15-1020-100 Click to Enlarge » Parallel Polishing Fixture, Stainless Steel, 4" (100 mm) Diameter
15-1025 Click to Enlarge » Teardrop Fixture 40 mm Mount Capacity
15-1035 Click to Enlarge » Weight Kit including: (1) 200 and (1) 100 gram Barrel Weights, (1) 200, (1) 100, and (1) 50 Gram Slotted Weights and (1) Holding Rod
15-1045 Click to Enlarge » Multipurpose Fixture, 2" W x 1" H x 0.75" D (51 x 25 x 19 mm) pocket
15-1046 Click to Enlarge » Multipurpose Fixture, 45° Diagonal Orientation, 2" W x 1" H x 0.80" D (51 x 25 x 20 mm) Pocket
15-1047 Click to Enlarge » Multipurpose Fixture, 1.00" W x 0.40" H x 0.45" D (25 x 19 x 11 mm) Pocket
15-1048 Click to Enlarge » Multipurpose Fixture, 45° Diagonal Orientation, 1" W x 0.4" H x 0.5" D (51 x 10.2 x 12.7 mm) Pocket
15-1050 Click to Enlarge » Cross-Sectioning Paddle Clamp Style with 0.63" W x 0.10" H x 0.25" D (16 x 2.5 x 6.4 mm) Pocket
15-1051 Click to Enlarge » Cross-Sectioning Paddle, Clamp Style, Diagonal Orientation with 0.63" W x 0.10" H x 0.25" D (16 x 2.5 x 6.4 mm) Pocket
120-30015 Click to Enlarge » Digital Indicator Measurement System, with Granite Stand

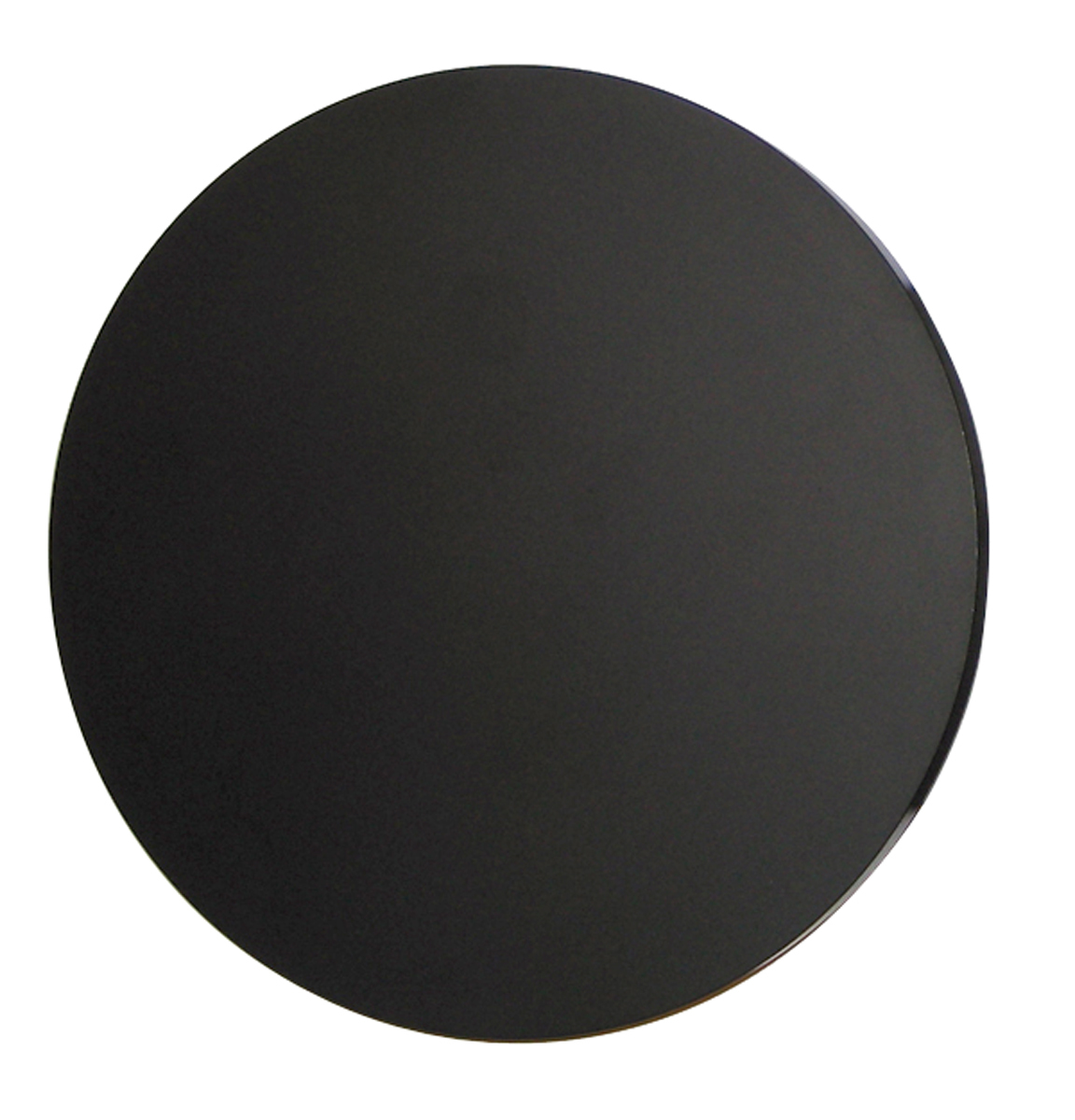

10-1010 Click to Enlarge » Precision Aluminum Platen, 12" (305 mm)
5-8100 Click to Enlarge » Platen Storage Cabinet for Platens, Discs or Cloths up to 12" (300 mm) Diameter
5-8105 Click to Enlarge » Aluminum Tray/Shelf
